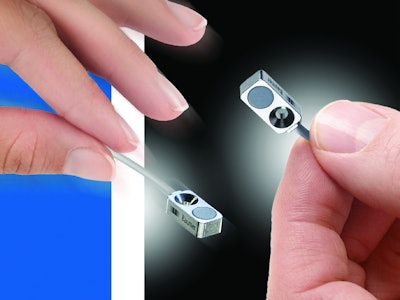

IWFM 08 Series Inductive Sensors

Compact, high resolution inductive sensors from Baumer Group measure distances to 2 mm.

Iwfm08 10210579

For limited space distance measurement and positioning applications involving metal targets, Baumer introduces the IWFM 08 Series of Inductive Sensors.

  • Measures 4.7 x 8 x 16 mm
  • Easy-to-mount sensors offer resolutions of <0.001 mm at sensing distances up to 2 mm
  • High linearity and repeat accuracy
  • Ideal for a variety of highly precise industrial applications
  • IWFM 08 Series sensors feature an integrated 10v output; allows them to be directly connected to the analog outputs of a control system and eliminates the need for measuring boards or processing units
  • IP67-rated sensors are contained in die-cast zinc/nickel-plated housings that prevent damage during installation and operation
