RTY Series Hall-Effect Rotary Position Sensors

Honeywell's RTY Series Hall-Effect Rotary Position Sensors are durably designed provide a 12 million cycle product life.

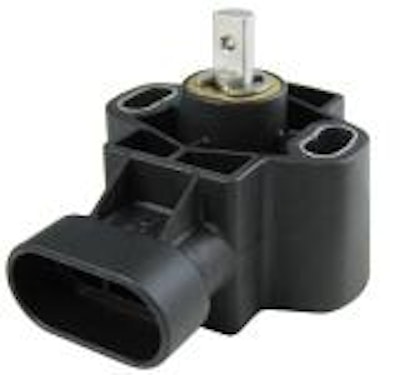

Honeywell Rty 10631727

Honeywell introduces its RTY Series Hall-Effect Rotary Position Sensors that provide a cost-effective rotary position sensor solution.

  • Variety of options (e.g., sensing range, pinout, voltage) allow customization of sensor configuration to meet specific application needs, including those in harsh environments
  • Features 12 million cycle product life
  • Includes eight operating ranges (50 degrees, 60 degrees, 70 degrees, 90 degrees, 120 degrees, 180 degrees, 270 degrees and 360 degrees)
  • Operating ranges are tolerant to over-travel and allow OEMs to choose range of travel needed for specific applications
  • Solid-state Hall-effect technology provides non-contact operation and low torque actuation for longer lifespan
  • IC, conditioning and protection circuitry, and permanent magnet are sealed in IP67-qualified package for durability in most harsh environments
  • Integrated reverse polarity protection provides protection against installation errors
  • Robust design protects against electromagnetic interference
  • Includes industry-standard AMP termination, 32 mm mounting pitch, and North American and European pinout styles
  • Compact package provides easier drop-in replacement in existing applications
  • Uses magnetically biased, Hall-effect integrated circuit (IC) to sense rotary movement of actuator shaft over set operating range
  • Rotation of actuator shaft changes magnet’s position relative to IC, and resulting flux density change is converted to a linear output
  • Low voltage and high voltage versions cover input voltage range of 4.5V DC to 30V DC
