MTS-360 Mechanical Mount Rotary Position Sensor

Piher Sensors & Controls' MTS-360 Mechanical Mount Rotary Position Sensor features an integral PCB for fast and easy mounting.

Piher Mts360mechanicalmountrot 10895725

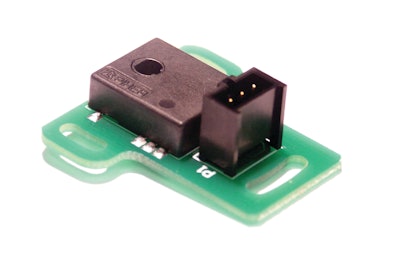

Piher Sensors & Controls has introduced the MTS-360 Mechanical Mount Rotary Position Sensor with integral PCB for fast and easy mounting.

  • Directly mounting sensor onto PCB allows elminates need to design printed circuit board for sensor
  • Assembly is available with either 6 pin (dual output) or 3 pin (single output) Molex 90119 Series mating connectors
  • Can be easily secured with three standard M3 screws
  • Entire assembly measures 35 mm wide x 36 mm long x 7.5 mm high, allowing for applications with tight packaging constraints
  • Merges a through-shaft design with 360 degree absolute position feedback in a small size package
  • Offers reliability up to 50 million cycles
  • Patented Hall effect technology enables true non-contacting through-hole shaft sensing using a simple three hole mechanical mounting
  • Standard model features a 4 mm double D-flat through-hole and three slotted mounting holes allowing final rotational adjustment at assembly
  • Includes electrical angles up to 360 degrees with no dead band and linearity as low as ±0.5%
  • Rated for use in -40 to 125 C environments
  • Can operate up to 333 rpm
  • Programmable with full scale output with angles as narrow as 15 degrees or as wide as 360 degrees
  • Output is selectable between Analog, PWM 12 bits or Serial Protocol (SPI) at 14 bits and includes a second output channel to provide a programmable switch signal
  • Redundant version with a dual core sensor in the same package is also available with the 6 pin Molex mating connector
  • Programmable switch is also offered allowing a switch output that can be triggered anywhere within the 360 degree rotation
