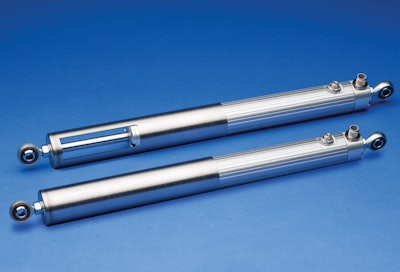

Novotechnik U.S. introduces the LWX-002 Series shaft protected position sensors designed for extremely harsh environments. The all-metal sensor shaft is protected over its range of motion with an SS304 alloy, 0.9 mm thick stainless steel shield.
- Features patented differential pressure compensation system to compensate for the pump effect-pressure that can build up due to push rod movement
- Differential pressure compensation system ensures freedom from degradation due to pressure buildup that can otherwise occur in rod sensors over time
- Backlash-free pivot heads are designed for easy mounting and permit ±12.5% free movement
- Incorporated hydraulic shaft seal protects against ingress of water and dust to IP67
- Seal also withstands oil
- Features shock capabilities to 50 g and vibration to 20 g
- Offers stroke lengths from 50 to 750 mm, linearity to 0.04%, life to 50 million operations and repeatability of 0.01 mm
