PTP Series Open Housing Position Sensors

Novotechnik introduces its PTP Series open housing position sensors can be mounted into enclosed devices.

Novotechnik Ptpseriesopenhousi 11529805

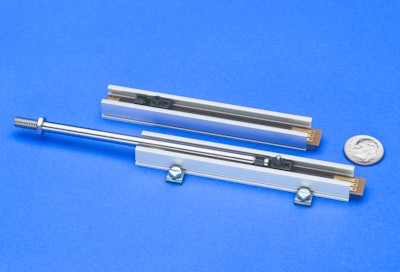

Novotechnik U.S. introduces the PTP Series of open housing position sensors.

  • Can be mounted in enclosed devices
  • Custom wiper interfaces are available
  • Feature ultra-compact profile of 13 mm width by 11.6 mm height
  • Length is dependent on the application and typically is between 10 and 300 mm
  • Integral guides and mounting clamps make mounting quick
  • Other mounting options available
  • Can be ordered without a rod and side-actuate, enabling users to minimize costs
  • Offers life of up to 50 million movements, resolution ≤ 0.01 mm
  • Linearity is to ±0.05% and repeatability is ±0.01 mm
