Omega Engineering LDI-127 Series LVIT Position Sensors

Omega Engineering's LDI-127 Series LVIT position sensors feature a contactless design for longevity and an anodized aluminum housing sealed to IP67 for use in harsh operating conditions.

OmegaEngineering LDI127LVIT 56c64171acd52

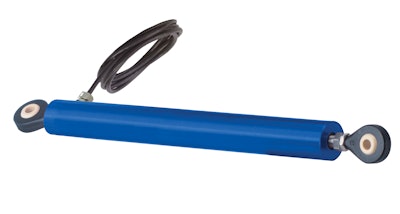

Omega Engineering introduces the LDI-127 Series LVIT (Linear Variable Inductive Transducer) position sensors.

  • Utilizes contactless technology
  • Compact and modular design
  • Provides high-end performance and excellent stroke-to-length ratio
  • Features 27 mm (1.05 in.) diameter anodized aluminum housing sealed to IP67
  • Available in wide choice of ranges from 25 to 200 mm (1 to 8 in.)
  • Delivers high accuracy with low linearity error
  • Includes radial cable exit with swivel rod eye ends for easy installation
  • Designed to operate under adverse temperature, vibration, shock, and humidity conditions
  • Operates from a variety of DC voltages, 0-10V output with 12-30V input, 35 mA max;
  • Offers choice of outputs and includes Field Programmability calibration feature
  • Operating temperature range is -20-85C (-4-185 F)
