Alliance Sensors LV-45 Series Inductive Contactless Linear Position Sensors

The Alliance Sensors LV-45 Series inductive, contactless linear position sensor has an operating temperature ranges of -40-85 C and is capable of withstanding use in high vibration and shock environments.

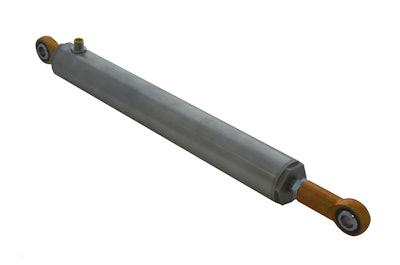

LV 45SideView 57336b7e9697c
Headerimagealliancesensors 10933034

H. G. Schaevitz LLC, Alliance Sensors Group has released its LV-45 Series inductive, contactless linear position sensor using LVIT (Linear Variable Inductance Transducer) Technology.

  • Specifically designed for measuring applications requiring rugged devices
  • Withstands use in high vibration, extreme temperature and humidity, and severe shock environments
  • Proprietary inductive technology allows device to replace traditional DC-LVDTs in most applications
  • Simple coil design permits sensor to be both shorter and more rugged than DC-LVDT counterpart while operating over a wider temperature range
  • Available with optional mounting flanges, rod eye ends, connector or cable terminations, and a captive connecting rod assembly that cannot break loose
  • SenSet range adjustability feature allows users to scale zero and full span output to actual range of motion being measured after sensor is installed
  • Operating temperature range is -40-85 C (-40-185 F)
  • Ranges from 100-450 mm (3.94-17.72 in.) with various analog outputs
  • Double shaft seals keep dirt and grime out of the bore
  • Includes 1/2 to 20 UNF externally threaded core rod with core being captivated so it can't come out
  • Axial or radial connector or cable terminations available
  • Features 1.75 in. (44.5 mm) outer diameter body with 5 mm (0.2 in.) wall thickness
  • Available with 1/2-20 UNF threaded or rod eye end connecting rod
  • Optional mounting hardware available
