MTS Sensors FMH Magnetostrictive Linear Position Sensors

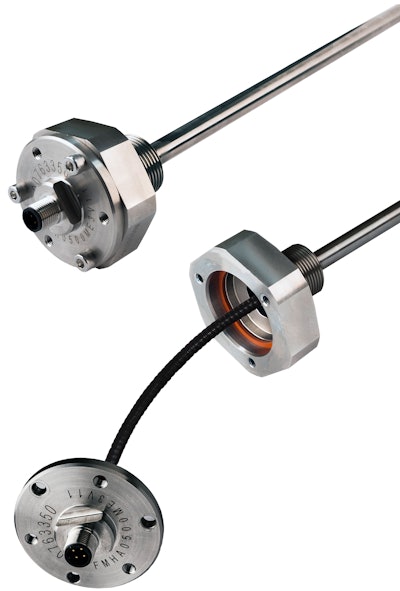

MTS Sensors' FMH linear position sensor features a two-part design to allow the flexible sensing element and electronics to be separated from the housing without opening the hydraulic system.

MTS PR20 MH Flex v4b HRES 579f766b756ca
Temposonics With Amphenol Logo Red Jpg

MTS Sensors has expanded its MH Series of magnetostrictive linear position sensors by introducing the field-serviceable Flexible MH (FMH).

  • For use with hydraulic cylinders in mobile applications
  • Externally threaded
  • Features two-part design which allows users to separate flexible sensing element and electronics from housing without opening the hydraulic system
  • Enables installation and removal in the field
  • Internal components can be removed and replaced with just 200 mm (7.87 in.) of clearance, regardless of stroke length and without breaking hydraulic seal
  • Uses proprietary Temposonics magnetostrictive technology to deliver high-performance operation with ±0.2 mm (0.0079 in.) typical resolution, repeatability of ±0.005% (full scale) and ±0.04% linearity (full scale)
  • Available with Analog or CANbus output options
  • Supports stroke lengths of 500-5,000 mm (19.69-196.85 in.)
