Novotechnik RFE 3200 Series Angle Sensors

The angle sensors measure from 0-360 degrees and can be ordered with one partially redundant or two fully redundant channels.

July 1, 2021

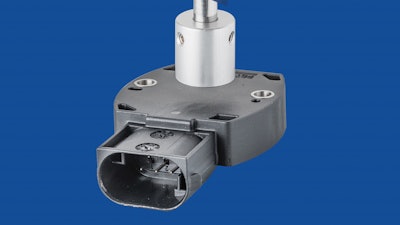

RFE 3200 Series angle sensors

RFE 3200 Series angle sensors

Novotechnik

Novotechnik, U.S. introduces the RFE 3200 Series of angle sensors designed to operate in demanding environments like off-highway equipment and other harsh environment applications.

Features ingress protection to IP69K, EMC immunity, decoupled sensor and magnet
Measures from 0-360 degrees and can be ordered with one partially redundant or two fully redundant channels
Shock tolerances are 50 g and vibration tolerances are 20 g
Temperature range is -40-125 C (-40-257 F)
Suitable for safety-related applications according to ISO 13849 upon customer validation
Resolution is 12 or 14 bits, depending on version and repeatability is ±0.1 degrees or less
Meets or exceeds 10 EMC standards, detailed in data sheet
MTTF is ≥ 397 years per channel
Output options are 4-20 mA, 0.25-4.75V, 0.5-4.5V, CANopen, and CAN SAE J1939
