Series S4150 Mechanical Pressure Switches

tecsis introduces its Series S4150 mechanical pressure switches featuring high reliability and repeatability.

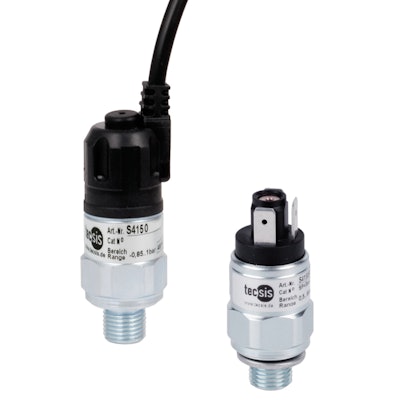

Tecsis S4150pressureswitch 11077162

tecsis introduces the Series S4150 mechanical pressure switches with a cable output.

  • For various pressure ranges from 0.2 ... 2 bar up to 40 ... 400 bar
  • Offers high reliability and repeatability (± 2% of full scale)
  • Integrated micro switch with self-cleaning silver contacts can be used reliably for switching currents from 5 mA to 4 A
  • Switching point can be set either in the factory or onsite by the customer
  • Available with a ‘hot-melt’ output - the cable is molded with the housing
  • Provides high degree of ingress protection (IP69K) and robust strain relief
  • Hot-melt version can be adjusted both in the factory and onsite by the customer
