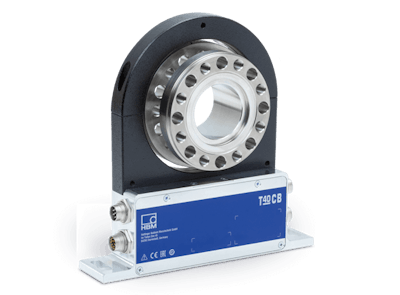

HBM T40CB High-Speed Torque Transducer

HBM's T40CB torque transducer provides speeds up to 30,000 rpm for application testing.

Tor T40 Cb Teaser
Hbm 10056637

Measurement technology expert HBM has launched the T40CB torque transducer.

  • Features central bore hole that suits testing parts in confined spaces
  • Two variants available, one which measures 49 mm (1.9 in.) in length with central bore hole diameter measuring 37.5 mm (1.5 in.)
  • Second available version measures 54 mm (2.1 in.) in length with 46.5 mm (1.8 in.) diameter central bore hole
  • Operates at speeds up to 30,000 rpm
  • Nominal torque of 500 Nm (368.8 lb.-ft.)
  • Provides flexible and user-friendly design for carrying out application tests on parts, such as coaxial transmissions or gearboxes
  • Operates on HBM’s well-established T40 electronics which boast accuracy class of 0.05 and excellent linearity, ensuring accurate and reliable results
  • Features analogue and digital interfaces which ensure integration with many different test bench systems
