Rugged GEMCO 958A Rod-Style Linear Displacement Transducer by AMETEK Factory Automation

AMETEK embedded linear position sensor is designed for extreme conditions and demanding off-road vehicle applications.

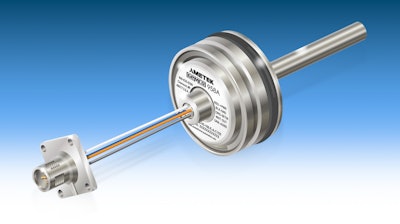

Gemco 958 A Linear Displacement Transducer 5900de7fb59be

The GEMCO 958A embedded Linear Displacement Transducer (LDT) from AMETEK Factory Automation was designed specifically with the needs of the mobile hydraulics market in mind.

  • Designed to fit entirely inside a hydraulic or clevis style cylinder and provide absolute analog feedback
  • Offers absolute accuracy and reliability with high resolution and precision repeatability
  • Uses AMETEK’s field-proven magnetostrictive position-sensing technology to give absolute analog position, accurate to 0.04% of the programmable sensing distance
  • A variety of analog outputs are available to meet user needs
  • Applications include agricultural, construction and mining equipment and commercial vehicles
  • Embedded design makes the 958A resistant to contaminants and other environmental conditions.
  • IP68 rated
  • Vibration resistance lab tested at 30Gs
  • Shock resistance lab tested to 1000Gs
  • Can be powered from 8 to 30V DC at 1.6 watts
  • Features an auto-tuning capability, which allows it to sense a magnet other than the standard ring magnet and adjusts its signal strength accordingly
  • Unique built-in diagnostics capability displays the health of the unit and helps aid in troubleshooting problems
  • Can be ordered in span lengths from 2-100 in. (50-2,540 mm)
  • Comes standard with either integral cable assemblies, bare leads or M12 style connectors
  • Custom configurations are available to meet specific end user requirements
