TE Connectivity M9100 Pressure Transducer

TE Connectivity’s M9100 pressure transducer for harsh environments increases machine operational efficiency to limit downtime and failure.

M9100 470x445 Grey
TE Connectivity
Te Logo

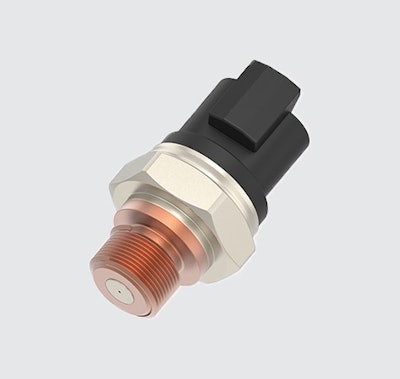

TE Connectivity has developed the M9100 pressure transducer which is based on the company's Microfused strain gauge technology.

  • Operates in extreme conditions at pressures up to 700 bar (10,152.6 psi)
  • Features snubber design
  • Available with standard configurations
  • Provides durability against pressure spikes
  • Less prone to errors and maintenance
  • Robust package allows for reliable sensor operation while submerged in water
  • Excellent EMI/EMC performance according to ISO 11552
  • Withstands nearby electrical noise and can be installed next to EMI emitting components
  • High level of electrical protection to the power supply makes more robust to poor power supply control and reduces risk of system issues
  • 27 mm (1.06 in.) hex and considerably compact height (down to 50 mm/2 in.)
  • Fitted for large, durable connection systems like TE’s DEUTSCH DT connector series
