CLEANFIX Hydraulic Cooling Fans

The CLEANFIX intelligent hydraulic cooling fans include the company's Smart-Seal System to ensure leak-free operation.

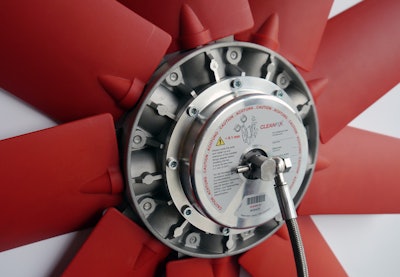

Cleanfix H162 561d0ff8647a8
Logo Cleanfix 4c

CLEANFIX North America Ltd. announces the launch of its intelligent hydraulic cooling fans used to prevent problems associated with overheating and inefficiency of the engine.

  • Applications include in a wide range of agricultural, forestry, construction, waste and recycling equipment
  • Benefits include more power on the PTO shaft and on the wheels, fuel savings, and noise reduction as engine speed can be reduced
  • Can save up to 30% of drive power in comparison to electronically controlled standard viscous fans while delivering the same cooling capacity
  • Lineup includes standard reversing fan with hydraulic actuation (HSCSeries) in addition to the standard reversing function, and thermal-controlled variable blade pitch controlled fan (HVP-Series with wax elements)
  • Fully electronically controlled CLEANFIX-Hytronic fan (HT-Series) controls exact blade angle and thus cooling performance by using CANbus or CLEANFIX electronics with integrated Hall sensor
  • CLEANFIX electronics can also be replaced by the vehicle or engine electronics
  • Features CLEANFIX Smart-Seal System to keep system free of leaks in particular at high speeds, high temperatures and pressures up to 50 bar
  • Intelligent sealing system ensures maximum operating safety through integrated leakage oil recirculation - both for the piston seal as well as for the rotary intake
