Danfoss K2 Frame Axial Piston Pump

The Danfoss K2 frame axial piston pump includes sound-deadening characteristics to meet industry noise regulations and is up to 30% lighter in weight than previous Series 45 pumps.

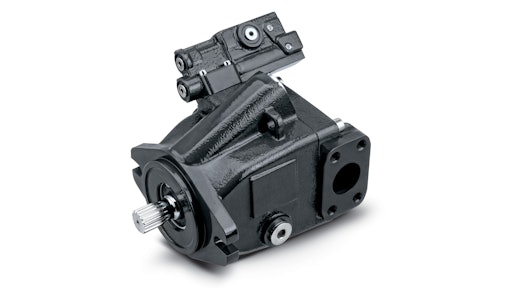

K2 Pump With Pcls Control 58e3ffd432016
Logotype Cmyk Pms 11172710

Danfoss Power Solutions is updating the Series 45 pump portfolio with the addition of the K2 frame axial piston pump.

  • Frame has been reduced in length by up to 20%, width up to 10%, and weight up to 30%
  • Output of 25-45 cc
  • Modular design
  • Offers wide range of displacements, controls, and configurations designed to fit multiple off-highway applications
  • Improves performance with increased rated pressure, and higher rated speed and temperature capabilities
  • Additional features inside housing allow for dissipation of noise and vibration
  • Sound-deadening characteristics help meet local industry regulations for noise
  • Pumps with fan drive controls allow lower minimum system pressures, resulting in slower minimum fan speed, reducing fan drive noise and improving efficiency
  • New endcap configurations are optimized for size and weight to provide greater flexibility in installation
  • Can be integrated with PVG and PLUS+1 solutions, offering infinite number of control combinations and providing ability to be refined to meet specific requirements
