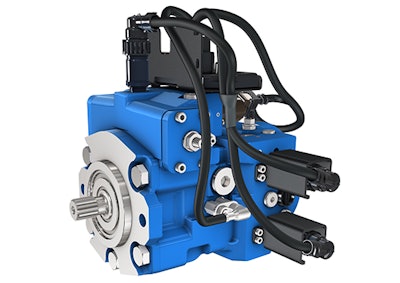

Poclain Hydraulics PMe Pump

Poclain's PMe pump, exhibited at Agritechnica 2017, features a set of integrated sensors and embedded Electronic Control Unit.

Pme Pump
Jpeg Logo Poclain Hydraulics

Safety, accuracy and performance: those are the features of the Poclain Hydraulics PMe pump, which integrates a set of sensors and an embedded Electronic Control Unit (ECU), the SmartDrive CT 30.

  • Comes in two sizes, 30 and 50
  • Available with electro-proportional servo control with or without mechanical feedback, depending on degree of accuracy requested
  • Designed to be easily integrated into wide variety of machines
  • On-board ECU withstands harsh environments, including proximity to combustion engine
  • ECU is pre-wired and pre-programmed, and ready to be connected to driving devices to reduce development costs and time to market
  • Associated electronic devices are delivered already plugged onto pump and wired to ECU
  • Two integrated CANbuses allow configuring, machine diagnosing and information sharing with other machine components (e.g. engine, displays, hydraulic components)
  • Includes several pre-defined software functionalities
  • Speed control loop is available for specific applications that need constant driving speed, a pre-requisite being two speed sensors in the wheels
  • Can be used as slave unit via CANbus
  • Electronics perform accurate pump control due to factory pre-set calibration
  • Can provide the plugged sensors’ physical and electrical values (temperature, pressure, speed) via CANbus to master ECU
