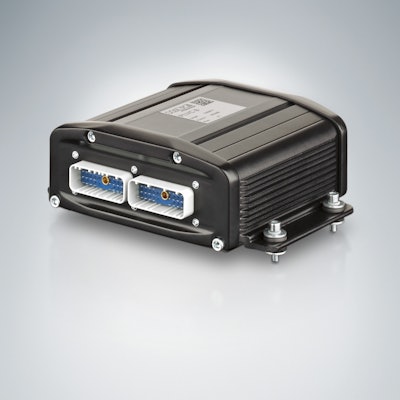

The programmable logic valve control PLVC 8x2 from HAWE Hydraulik enables comfortable access to complex hydraulic systems in cranes, crane installations, construction machinery, complex lifting and hoist-ing installations, forestry machines and other mobile applications.
- User can program pressure, velocity and acceleration processes; complex control and actuation tasks
- Analog and digital components and those with CAN-BUS interfaces are interlinked, including joysticks, potentiometers, stop switches, pressure switches, rotary encoders, speed sensors, and valves
- 16 proportional outputs
- Six digital frequency inputs; eleven analog inputs that switched between 0-5v, 0-10v, and 4-20 mA with the help of software
- An extension board can be activated if additional inputs and outputs or a second CAN-BUS interface are required
