HLE10-CPC, HLE10-OPO and HLE10-CVO High Power Hydraulic Valves

Comatrol announces the release of its HLE10-CPC and HLE10-OPO high power hydraulic valves, designed to provide higher flow and pressure capabilities.

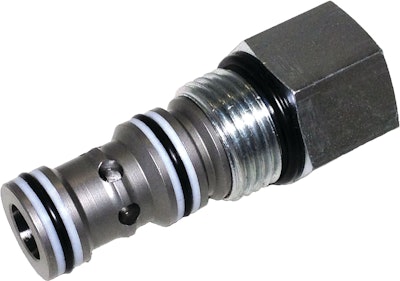

Comatrol Hle10 Cpc Hydraulicca 10843870
Comatrol018 10714694

Comatrol introduces the HEL10-CPC (Normally Closed, Pilot-to-Close) and the HLE10-OPO (Normally Open, Pilot-to-Open) high power logic elements in response to the market demand for higher flow and pressure capabilities in smaller valves. The HLE10-CVO is a high pressure logic element, normally closed, vent-to-open and features a rated flow of 80 LPM (21.1 GPM). This valve can be applied as a pilot operated relief valve (proportional or mechanical), pump unloading, pilot operated sequence valve or a selector valve, when used with other valves in the circuit.

  • Delivers high performance in cost-effective valve designs with small space claims
  • Uses a 10-3S cavity, which allows for higher flow than a standard 10-3 cavity
  • Allows high pressure of 350 bar (5,075 psi)
  • HLE10-CPC is a high pressure logic element, normally closed, pilot to close, and features a rated flow of 80 LPM (21.1 US gal/min)
  • Can be applied as a load-sensing bypass compensator for a fixed displacement pump with single or multiple actuators, and a bypass-type for pressure-compensated flow control
  • HLE10-OPO is high pressure logic element, normally open, pilot to open and offers a flow rating of 60 LPM (15.8 US gal/min)
  • Can be used as a pre-compensator for proportional directional control or flow controls
  • Use as a compensator ensures that flow rate and subsequent actuator speed are maintained regardless of load pressure
  • Available with an external screw adjustment identified as HLEA (high pressure logic element, adjustable): HLEA10-CPC, HLEA10-CVO and HLEA10-OPO, which allows the operator to change the compensator setting of the logic element, ranging from 2.75 to 15.2 bar (40 to 220 psi)
