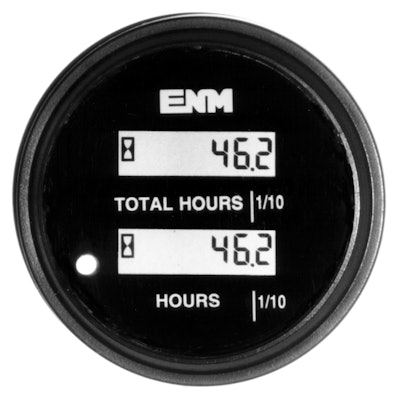

PT12 LCD Preset Hourmeter

ENM introduces the PT12, an LCD preset hourmeter with two LCD displays for easy readability in maintenance applications.

Pt12 10367387
Enmco 10055366

ENM’s series PT12 features two six-digit, seven segment LCD displays, and channel two is self programmable.

  • Service LED light informs operator when preset value setting is reached
  • Accumulated hours stored on powerless, non-volatile data backup using CMOS EEPROM technology
  • Hour meter module displays hour glass and decimal point
  • Allows customer to preset total hours and replace failed meter without loss of total elapsed time
  • Key lock feature prevents unauthorized access to meter’s reset and programming functions
  • Includes non-volatile memory (no battery)
  • Totally sealed to IP67
  • Fits round 2 in. panel openings
  • Features low operating current
  • Provides wide operating voltage and temperature range
  • Includes 10 pins connector wire harness with locking feature

To see product dimensional data, download the spec sheet.
