New Kobelco SK140SRLC-7 Excavator Provides Enhanced Efficiency and Productivity

The SK140SRLC-7 excavator features an engine offering increased output and a new hydraulic control system which reduces digging cycle time by 10%.

Kobelco Sk140 Excavator

Kobelco Construction Machinery Europe B.V. (KCME) announces the arrival of the SK140SRLC-7 –a 14-tonne excavator that delivers enhanced efficiency and productivity through harmonization of mechanical power, operation speed and overall machine design.

The SK140SRLC-7 is of a new generation of excavators. Coupled with modern manufacturing processes and customer feedback, the Japanese manufacturer’s SK140SRLC-7 sets a new class-defining standard in operational use and operator comfort.

The latest in a long line of powerful and efficient 14-tonne excavators, the Kobelco SK140SRLC-7 takes power and efficiency even further. The Isuzu Motors Ltd 2,999 cc turbo charged diesel engine has been created to be emissions standard Stage V compliant, while at the same time gaining a significant 10% increase in engine output (compared to SK140SRLC-5). The performance increase ensures no loss of power on gradients and with heavy bucket loads, and delivers a drawbar pulling force of 140 kN. Complete with a new hydraulic control system, digging cycle time has been reduced by 10%, compared with the previous model.

Design principles are all-important keys to machine operation and, of course, purchasing decisions. Kobelco has always believed that operator care and safety through design is paramount; the SK140SRLC-7 benefits from a modern cabin design with operating controls and systems that feature the latest available technology as standard to boost production efficiency through precise, easy to use and read controls, operator comfort and security.

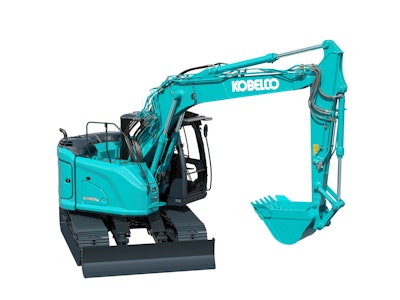

Sk140 Srlc 7 Eu Cut01 190925

The cabin of SK140SRLC-7 is an arena of ultra-modern, easily accessible operating controls and components comparable to that of premium automobiles. The layout is designed to deliver a new experience in excavator operation, starting with a10-in. color monitor–the largest in-cab visual information screen within the excavator industry.

The easy access 10 in. color monitor provides the operator a clear view of important machine status information, function menus and the all-important views from three cameras that are supplied as standard equipment –as well as rear and right side images, used in conjunction with the third camera (positioned on the left side), a unique “eagle-eye” view can also be selected. The monitor functions are controlled by a latest specification multifunction jog-type dial also LED back-lit for ease of operation.

Installed in the new SK140SRLC-7 is a heated and air-cushioned Kobelco-branded Grammer seat that is constructed to incorporate the joystick and armrests as one unit, so any movement of the seat means the operator remains comfortable and in full control. The seat and console units of this superior seating system are designed so that available range of adjustment provides the ideal posture position for any operator to give all-day comfort, therefore boosting work efficiency. The cabin’s standard air-con system has been revised so cooling air is directed towards the operator’s upper torso from two ducts positioned left and right at the rear of the cab.

Further aiding the operator is anew control lever and hydraulic system that has shorter, more precise lever movement to further promote operator comfort.The use of LED backlighting on all control switches is pleasing on the eye and reduces eyestrain especially during short daylight working hours and night time operation.

Other features that boost operator safety are: A) the use of a LED door lamp that switches on when the cabin door is opened or the ignition switched off, and B) the FOPS Level II roof guard is equipped with a lockable swing-open section so the external roof glass can be easily cleaned to ensure unhindered visibility/daytime light.Parallel front window wipers ensure a significantly larger swept area of the front window for an uninterrupted view and the system incorporates one-time use along with continuous and intermittent use operation.

Kobelco design and support has led toQuick Hitch piping being fitted as standard on the SK140SRLC-7, further promoting its capability as a multi-purpose machine. In conjunction with the latest hydraulic control system, the operator can select one of seven pre-set hydraulic attachment modes (e.g. bucket, nibbler, tilt rotator, breaker etc.) via the 10-inch color screen and jog-dial. In addition to the pre-set modes, four optional modes can be configured to operation requirements.

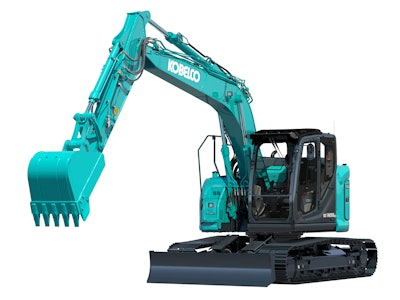

Sk140 Srlc 7 Eu Cut03 191004 2

The SK140SRLC-7 is also available to order ex-factory with build options of dozer attachment, dual-boom, side drain, and additional counterbalance weights (580 and 1,000kg).

Kobelco’s Integrated Noise and Dust ReductionSystem (iNDr) provides the SK140SRLC-7 with low on-site noise operation – a necessary requirement when working in populated suburban areas, or in the close proximity of attending workforce. It also enhances serviceability by allowing easy access to the air filter, now mounted in front of the radiator system, which reduces day-today servicing downtime and use of additional tools to clean the filter.

Commenting on the introduction of the new SK140SRLC-7, Product Manager, Peter Stuijt, says, “Kobelco is committed to designing and manufacturing the most capable and efficient excavators and the introduction of SK140SRLC-7 is proof indeed of this.

“The latest technology that features within the SK140SRLC-7 provides the basis for a multi-purpose excavator with reduced operating costs and exceptional working performance. The fact that this machine is already Stage V-compliant also underlines Kobelco’s dedication to reducing the construction industry’s carbon footprint–an issue that nobody can afford to ignore.”
