Terex Launches Latest Enhancement in Hi-Ranger Distribution Aerial Device Product Line at ICUEE 2017

Terex's Optima Series improvements include greater payload capacity, better boom speeds, enhanced side reach and ground access, as well as features that improve maintenance access and reliability.

Opt 078

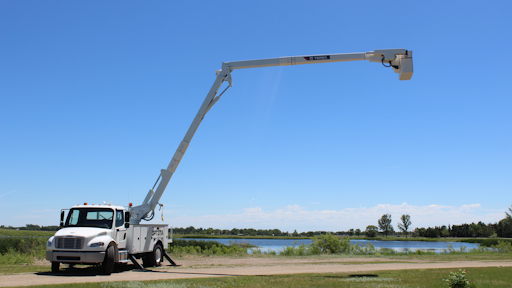

Terex Utilities debuted the Optima Series of enhanced aerial devices used for construction and maintenance of distribution lines at the International Construction & Utility Equipment Expo (ICUEE), Oct. 3-5, in Louisville, KY. The new Optima TC, TCX, HR, and HRX Series feature product enhancements in the heart of the Hi-Ranger aerial device product line.

 “Performance, productivity, and safety are among the top concerns of electric utility customers,” said Joe Caywood, Director of Marketing. “Terex Utilities has responded to customer requests time and again in an effort to provide continuous improvement of our products that are rooted in these three areas of focus.”

“Optima is built on the strong foundation of Hi-Ranger, designed to provide greater reliability, efficiency and simplified operation and maintenance,” says Joe Caywood, Director of Marketing. Product improvements include greater payload capacity, better boom speeds, enhanced side reach and ground access, as well as features that improve maintenance access and reliability on the Optima Hi-Ranger aerials.


“When it comes to payload capacity, operators always want more. Crews want to carry as much gear and equipment on their trucks as possible,” says Ted Barron, Vertical Market Product Manager. By using higher strength steel to reduce overall vehicle weight, Optima TCX and HRX now offer up to 1,000 lbs. more vehicle payload capacity, depending on specific configuration and stability requirements.

Improved boom speeds and responsiveness have been accomplished by redesigning the hydraulic circuit and optimizing the hydraulic cylinders.

An expanded working range optimizes capacity and supports improved ground access. “The lower ground access makes it easier for operators to hand off tools to ground personnel, clean out debris in the bucket and is useful in operator recovery situations,” says Caywood.

Optima TC and HR models boast 3 ft. more side reach. A visual indicator light shows the operator when the boom moves into the extended reach area of the working range. The addition of the optional Load Alert system further enhances safe work practices by monitoring the truck’s jib and basket capacity.

In addition, all Optima aerial devices now have 700-lb. platform capacity as standard. Optional 800-lb. capacity platforms are available on the Optima TCX and HRX models. An optional two single man 24 x 30-in. platform is available with capacity of 700 lbs. (350 lbs. for each bucket).


Over the life of the aerial device, simplified maintenance increases uptime for fleet managers and improves operation. The leveling chain now has extended life of 10 years before replacement (based on typical utility usage). At 5 years the inspection does not require the chain to be removed. A new pedestal design on all Optima models provides technicians easier access to torque lower rotation bearing bolts, which are now accessible on the outside of the pedestal. Plus all hydraulic fittings located above the boom rotation are sealed with O-rings, reducing leaks. Finally, all Optima aerial devices feature powder-coated finishes for longer life. “All of this adds up to less downtime and less cost for servicing the aerial device, which lowers the total cost of ownership,” says Caywood.
