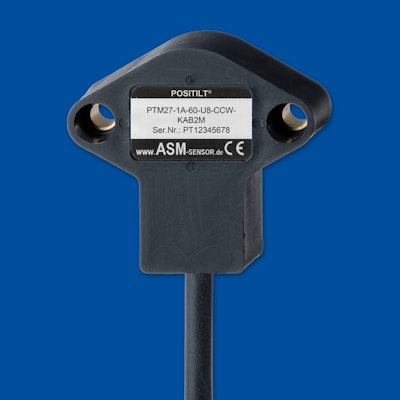

ASM positilt PTM27 Inclination Sensor

The positilt PTM27 inclination sensor measures inclination in the range of +/-180 degrees with one axis and in the range of +/-60 degrees with two axes.

Ptm27 Gross
Asmsensors 10055038

ASM introduces the positilt PTM27 inclination sensor which is robust, comes in an ultra-compact housing and provides high accuracy.

  • Measures inclination in the range of +/-180 degrees with one axis and in the range of  +/-60 degrees with two axes
  • Offers high measuring accuracy with linearity deviation max of 0.05 degrees and a resolution of 0.005 degrees over the measuring range 360 degrees
  • Based on MEMS technology
  • Works on contactless principal without any movable components
  • Wear-free, shock and vibration resistant
  • Sensor electronics completely encapsulated in housing, protecting against moisture, dust and dirt
  • Integrated water block prevents capillary moisture ingress along the cable
  • Features protection class IP67
  • Ultra-compact housing measures 10 mm (0.4 in.) in depth
  • Can be mounted in any axis orientation
  • Suited for various industrial applications, mobile machines and vehicles on public roads (E1 certification)
  • Can replace rotary angle sensors as neither a shaft nor a magnet is required
  • Digital (CANopen, CAN SAE J1939) and analog outputs are available
  • Available in stainless steel sensor housing with gyro-compensated MEMS technology for applications subject to high levels of shock and vibration
