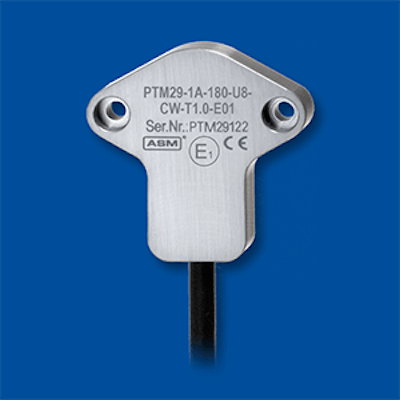

ASM positilt PTM29 Inclination Sensor

ASM's positilt PTM29 inclination sensor measures inclination in the range of +/-180 degrees with one axis and +/-60 degrees with two axes.

Ptm29 E1 Klein
ASM Sensors
Asmsensors 10055038

ASM Sensors introduces its high-accuracy inclination sensor positilt PTM29 which can be used in place of rotary sensors.

  • Suitable for extremely harsh environmental conditions
  • MEMS-based inclination sensor
  • Measures inclination in the range of +/-180 degrees with one axis and in the range of +/-60 degrees with two axes
  • Linearity deviation of 0.05 degrees and a resolution of 0.001 degree in the 360-degree measuring range
  • Offers very high measuring accuracy
  • Features contactless technology
  • Shock and vibration resistant, and is also resistant to contamination
  • Totally sealed, laser welded and hermetically sealed stainless steel housing
  • Sensor electronics are completely encapsulated
  • Cable area has special protection to prevent capillary water ingress along the cable
  • Compact sensor size (10 x 50 mm/0.4 x 2 in.) allows installation even in tight spaces
  • Achieves protection class IP67/69 and is shielded against electromagnetic interference
  • Can be mounted with free alignment of the measuring axes
  • Can be used in place of rotation angle sensors, as neither a shaft nor a magnet is required
  • Available with digital (CANopen, CAN SAE J1939) and analogue outputs
  • Available in identical sensor housing using gyro-compensated MEMS technology for dynamic applications
