TE Connectivity AXISENSE-G Dynamic Tilt Sensor

The AXISENSE-G dynamic tilt sensor combines MEMS sensing elements together with advanced filtering to ensure high level of accuracy.

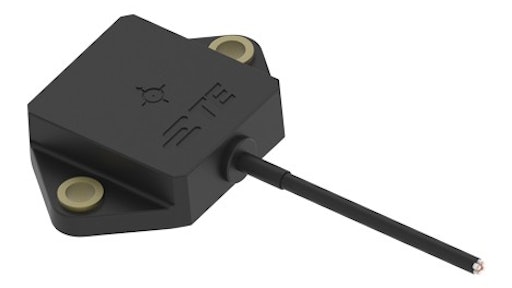

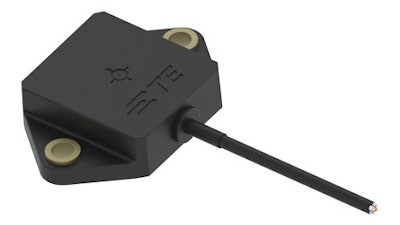

Gyro Tilt 470x445 3d T1
Te Logo

TE Connectivity (TE) has designed the AXISENSE-G dynamic tilt sensor to help meet evolving safety regulations.

  • Uses gyroscope compensation
  • Combines powerful MEMS sensing elements together with advanced filtering, resulting in stable and highly accurate tilt sensor outputs
  • Uses combination of sensors to measure acceleration, rotation rate and temperature
  • Algorithms use this data to calculate a highly accurate, fast output signal.
  • Digital signal processing includes factory and temperature calibration
  • Carefully designed signal conditioning with low distortion, custom filter levels and options to customize noise outputs, allow use in multiple noisy environments.
  • Highly accurate over a wide -40-85 C (-40-185 F) operating temperature range
  • Accuracy is ±0.5 degrees in a static state, and ±1.5° in a dynamic state
  • Simultaneously measures pitch and roll angles of up to ±75 degees
  • Offers lower noise output with a fast response time of <100 ms
  • Compact in size, with a high impact plastic housing
  • Direct drop-in replacement to previous models
  • IP67 rating provides protection in harsh environments where condensation, oils, grease, fuels and other contaminants may be present
  • Available as CAN J1939 and USB output
  • For use in agricultural and construction equipment and aerial work platforms
