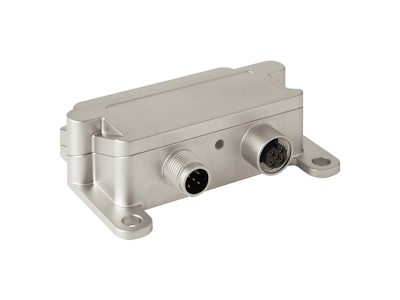

The IMS365R is a safe inertial measurement unit (IMU) for mobile machines. Certified according to SIL2 and PLd, the inclinometer IMS365R provides reliable and safe inclination values even in safety-critical applications.
The sensor is ideally suited for dynamic applications due to the integrated acceleration sensor and gyroscope. With the innovative sensor-fusion algorithm, external accelerations such as vibrations and shocks are compensated and reliable inclination values are provided.
In addition to the 360-degree inclination measurement in all three spatial axes, the Euler angle, such as pitch and roll, is measured. Its high degree of protection, robust housing and E1 approval (UN ECE R10) make it ideally suited for use in commercial vehicles.
- 6 Axis Inertial Measurement Unit (IMU)
- SIL2 (IEC 61508) PLd (DIN EN ISO 13849) certified (in preparation)
- Compensation of external acceleration thanks to innovative sensor fusion
- Freely configurable installation position and axis alignment
- Euler angle measurement (pitch and roll)
- E1 Approval by the German Federal Office for Motor Vehicles
Certified to SIL2 and PLd, the IMS365R provides safety values for inclination, acceleration and rotation rates and is ideal for safety-critical applications.
