Vert-X 05E Series Dual Angle/Speed Sensors

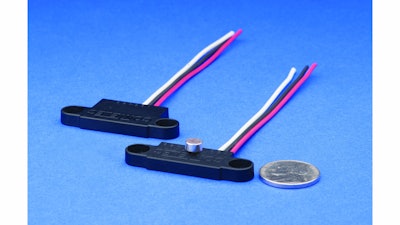

The Novotechnik Vert-X 05E Series of dual angle/speed sensors has a 5 mm body depth to easily fit into narrow spaces.


Novotechnik U.S. introduces the Vert-X 05E Series of dual angle/speed sensors.

  • Features easy mounting in small and narrow spaces with a 5 mm body depth and mounting flanges with metal inserts
  • Measures 6 mm from edge of product for close-to-wall measurement applications
  • Able to measure angles from 0 to 360 degrees, rotational speed and direction
  • Includes independent linearity to ±0.3% of measurement range, resolution to 12-bits (analog output) and 1,024 pulses per revolution (incremental outputs), repeatability to 0.1 degree
  • Measurement speeds are up to 120,000 rpm
  • Life is specified as unlimited mechanical movements and 390 years MTBF
  • Output choices include 0.5 to 4.5V analog as well as incremental including TTL, differential RS-422, push-pull/HTL and open collector
  • Operating temperature range is -40 to 125 C
  • Rated at IP68 for ingress protection
  • Applications include speed regulation of an electric motor, electric vehicle drive, crane, escalator, flowmeter, pump, fork lift, construction and agricultural machines
