AN9 Series Dual-output Rotary Position Sensor

Cherry Electrical offers the AN9 Series dual-output, non-contacting rotary position sensor.

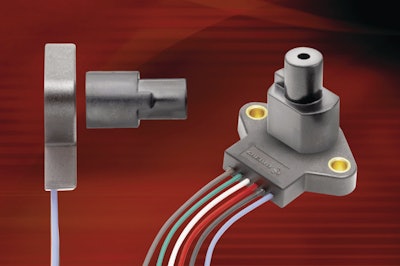

An9seriesdualoutputrotarypositionsensor 10058224
Zfelectronic Cherry Logo 10281842

Cherry Electrical Product's AN9 Series dual-output rotary position sensor is electrically and physically non-contacting, making it ideal for applications where high reliability and uncertain physical tolerances are involved.

  • Sensor output is programmable, but is available in standard output ranges from 0-45 degrees to 0-360 degrees
  • Sealed to IP68 for resistance to water immersion
  • Hall-effect-based
  • 5v DC ratiometric output
  • Applications include: steering wheel position sensor, shift-by-wire sensor, variable valve timing position sensor, and pedal position sensor for braking and acceleration
