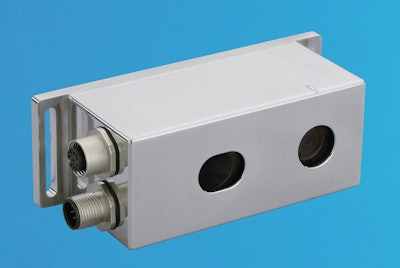

OPTIPACT Motion Sensor

OPTIPACT optical sensors provide velocity measurements in two axes without physical contact with the object being monitored.

August 31, 2010
POSITAL Inc.
Optipact 10167917
POSITAL FRABA 56cf5586b503f

OPTIPACT is a contact-free industrial sensor capable to measure two orthogonal axes without physical contact with the object being monitored.

  • Can detect any possible direction of motion at the same time
  • Available in the two version S1 and F1
  • Velocity Range up to 4 m/s (13 ft./s)
  • Resolution 100 µm
  • Synchronous measurement of two axes



Request More Information
Fill out the form below to request more information about OPTIPACT Motion Sensor
