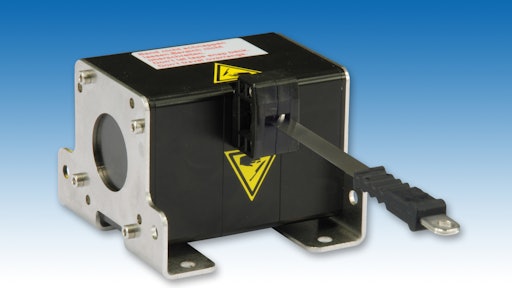

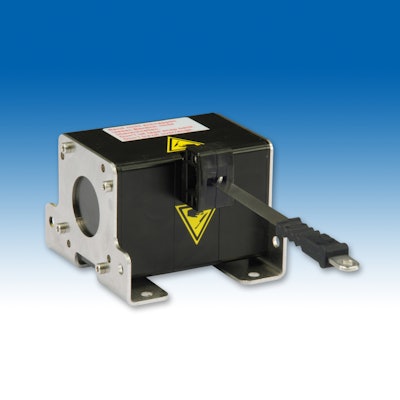

WB61 Tape Extension Position Sensor

April 25, 2013
ASM Sensors Inc.
Asm Sensor Wb61 A3p9sei61yocq
Asmsensors 10055038

With its Model WB61, ASM provides a sensor with a four meter measuring length combining a compact housing with high safety standards.

  • Works best where multiple pulleys are required
  • Stainless steel measuring tape is not liable to break when using several pulleys and is resistant to fluctuating temperatures
  • Corresponds to the strict safety requirements for cranes
  • Made of a high quality plastic housing fits the needs of cost competitive applications while still maintaining the required IP67 protection rating
  • Provides three analog and three digital outputs (SSI, CANopen, CAN SAE J1939)
  • Option of redundant design and a linearity of ±0.10%
