3100 Series Pressure Transducers

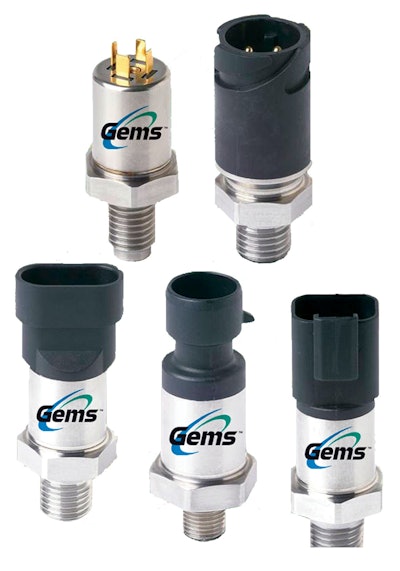

The Gems Sensors & Controls 3100 Series pressure transducers feature a thin film pressure sensing element and stainless steel wetted parts.

GemsSensors 3100Series 54e5051e39407

Gems Sensors & Controls has announced the availability of its 3100 Series pressure transducers as a standard catalog product.

  • Offers consistently high-performance, high-output, reliable, repeatable pressure measurement within a compact package
  • Incorporates sputtered thin film pressure sensing element with exceptional temperature specifications, along with all stainless steel wetted parts
  • Available in eight standard ranges, from 0 to 100 psi (0 to 7 bar) up to 0 to 30,000 psi (0 to 2,200 bar)
  • Standard proof pressures as high as 3.00 x FS, and up to 40X FS maximum burst pressure (100 to 300 psi; 7 to 25 bar range) available
  • Small overall footprint facilitates ease of installation within space constrained environments
  • RoHS compliant, with a minimum IP65 ingress protection rating
  • Fitted with an ASIC at time of order, enabling it to optionally provide either a voltage output or a 4-20 mA current output
  • Can be specified for industrial control and indicating loop requirements without need for additional amplification
  • Broad selection of electrical and pressure connections, as well as electrical outputs, are also available “off-the-shelf” in support of a diverse array of applications
  • Includes CE00086 mark and compliance with Pressure Equipment Regulations 1999
  • Classified as a safety accessory and may be used as a safety-related device on Category IV pressure equipment
