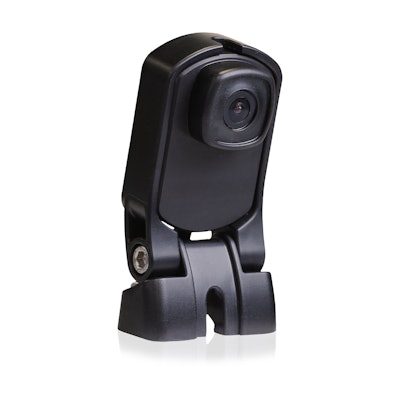

Orlaco EMOS Camera

Orlaco's EMOS camera system is durably designed to withstand use in harsh operating conditions and has a high light sensitivity of 0.05 lux for sharp image production.

0186xx0 Emos Camera Orlaco Highres

The EMOS camera from Orlaco is a compact camera that can be used universally on all types of monitors to bring the vehicle one step closer to smart vision and supports RTP over UDP.

  • Fast Ethernet (4-wire version) connection minimizes system delay and transfers images to monitor in real time; also available in a 2-wire version (BroadR-Reach)
  • Maximum latency is 48 ms at 30 FPS, and 31 ms at 60 FPS
  • Combination with common hardware processing platform, such as the IMX6 or ARM, enables total latency of camera-monitor system to be less than 100 ms
  • Includes CMOS chip technology
  • Features integrated corrections, such as automatic white balance, photometric and geometric lens correction, mirror imaging and ability to rotate images 180 degrees
  • Provides high light sensitivity of 0.05 lux to ensure sharp images, even in the dark
  • Available lens angles of 180 degrees, 120 degrees, 90 degrees, 60 degrees and 30 degrees
  • Provides crystal clear images with maximum camera output of 60 FPS at 720p SDR to 43 FPS at 960p HDR
  • For use in harsh operating conditions and is fully shock (to 50 G) and vibration resistant
  • Measures 55 x 60 x 24 mm (2.17 x 2.36 x 0.94 in.)
  • Weighs 150 g (0.33 lbs.) and is energy efficient (<2W)
  • Fully waterproof (IP68) and resistant to high pressure washing (IP69K)
  • Universal bracket allows mounting in numerous positions on any type of vehicle
  • Offers choice of fixed IP or DHCP and modification of the resolution
  • Start/stop stream lets users determine when to send images, reducing data consumption, traffic on the network and power usage
  • Operating temperature of -40-85 C (-40-185 F)
  • Shielded cable with sprayed-on connector provides EMC performance (100V/m)
  • Can be directly connected to vehicle's power supply (8-32V) and is protected from peak voltage, overvoltage, jump starts, spikes and ripples
