C10 Compressive Force Transducers

The C10 line of compressive force transducers from HBM are available in nominal forces ranging from 2.5 kN to 1 MN.

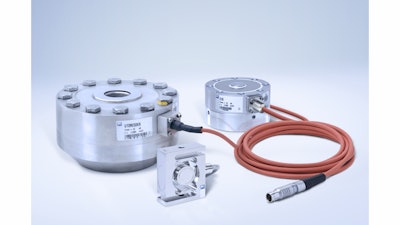

HBM_U10_C10_Transducer

HBM, Inc. has introduced the C10 line of compressive force transducers.

  • Offer precise sensing
  • Stainless steel version is hermetically sealed
  • Features IP68 rating to ensure use in environments where dirt and moisture can be a problem
  • Available with various nominal forces ranging from 2.5 kN to 1 MN, in accuracy classes ranging from 0.03 to 0.06
  • High output signal up to 4 mV/V
  • Features very low temperature coefficient
  • Zero point temperature coefficient, TC0, is only 75 ppm/10 K
  • Wide variety of options available, including a double-bridge option, TEDS transducer electronic data sheets, and many different cables and connectors
  • Applications can range from propulsion testing to end-of-line testing, to drop testing and anywhere precision force in harsh environments is required



Fill out the form below to request more information about C10 Compressive Force Transducers
