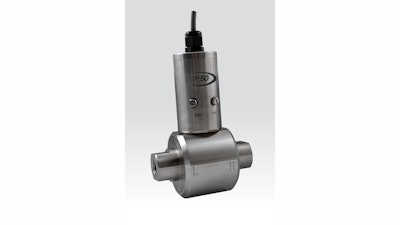

Model 216/316 Series Pressure Transducers

The Model 216/316 Series of pressure transducers from GP:50 feature a wet-to-wet design incorporating digital correction circuitry.


GP:50 Corporation LTD announces the introduction of its Model 216/316 Series, a family of compact, long range, high line differential pressure transducers.

  • Available in pressure ranges from 2.5 in. WCD thru 200 PSID (14 BAR), with line pressure options up to 5,000 PSI (345 BAR)
  • Model 216 is offered with choice of either 0 to 5V DC or 0 to 10V DC output
  • Model 316 is a loop-powered (4 to 20 mA) unit
  • Both models available with choice of unidirectional or bidirectional output, as well as with an improved accuracy specification of up to ±0.05% FSO
  • Wet-to-wet design incorporates company’s proprietary digital correction circuitry, along with all-welded, corrosion-resistant 316L stainless steel wetted parts and housings
  • Provides high-accuracy differential pressure transducer with very fast response time (<50 ms for 90% FSO)
  • Features extended service life across various applications
  • Customer selectable options include custom calibrations, Hastelloy wetted materials, IP67 rating and improved thermal compensation
  • Additional pressure transducer customization and industry approvals may also be available
  • Well suited for automotive and aerospace test stands; pressure decay for leak testing; emissions and energy management; HVAC; and in-laboratory R&D
