GP:50 Model 611/612 Series USB-Powered Digital Pressure Transducers

GP:50's Model 611/612 Series USB-Powered Digital Pressure Transducers feature an intuitive and user-friendly interface with direct compatibility to high-speed USB 1.0 and 2.0 formats.

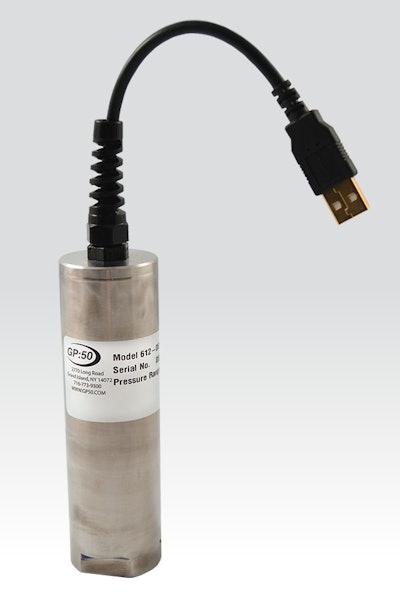

GP50 Model 611 612 USB Pressure Transducer 55428b434b4b7

GP:50 NY LTD has announced the global market introduction of its Model 611/612 Series USB-powered digital pressure transducers with automatic temperature and pressure output recognition.

  • Offers an intuitive and user-friendly interface with direct compatibility to high-speed USB 1.0 and 2.0 formats
  • Features 18-bit resolution and a 4.8 KHz internal measurement rate
  • Measured pressure values in absolute, gauge, sealed gauge or vacuum formats may be logged real-time onto any PC or mobile device without costly I/O interface board requirements
  • Available in pressure ranges up to 100K PSI (1,379 bar), with standard accuracies of ±0.25% FSO and optional improved accuracies of ±0.05% FSO, as well as improved thermal specifications of ±0.25% FSO/100 F
  • All stainless steel wetted parts and housings allow for years of reliable operation within demanding environments
  • Field options include a 1 to 500 Hz adjustable response time, adjustable baud rate, adjustable station numbers, and digital shunt calibration
  • Multi-drop and field configurable, with optional field re-zero functionality
  • Includes optional continuous data output streaming and two-point auto recalibration
  • Accompanied by free, easy-to-use data acquisition and analysis software, Digi-Stand which is fully compatible with any Windows OS computer
  • Typical applications include oil & gas pipeline and valve pressure testing; portable test stands; in-laboratory research; hydrostatic test stands; and calibration stands
