Alliance Sensors LRS-18 Spring Loaded Linear Variable Inductive Transducer

Alliance Sensors has introduced a spring loaded version of its LVIT featuring an aluminum body measuring 3/4 in. O.D.

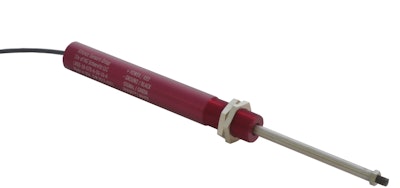

LRS 18 Cable Front Angle copy 56094173357a8
Headerimagealliancesensors 10933034

Alliance Sensors Group, a div of H.G. Schaevitz LLC, introduces the LRS-18 spring loaded LVIT (Linear Variable Inductive Transducer).

  • Merges benefits of contactless inductive sensing with the low cost of contact based technologies
  • Contactless operation prevents wearout from dither or cycling
  • Features 3/4 in. O.D. aluminum body
  • Offered in ranges 12.5-100 mm (0.5-4.0 in.)
  • Radial cable exit version comes with swivel rod eye ends
  • Four Analog outputs
  • Axial termination versions with either M-12 connector or 1m cable
  • ASG's proprietary SenSet field scalability
  • M18 x 1 threaded aluminum or stainless steel body with mounting nuts
  • Maximum tip force is 1 lb.
