Measurement Specialties MHR-V Series LVDT

The MHR-V Series LVDTs from Measurement Specialties are capable of operating under pressures up to 10,000 psi.

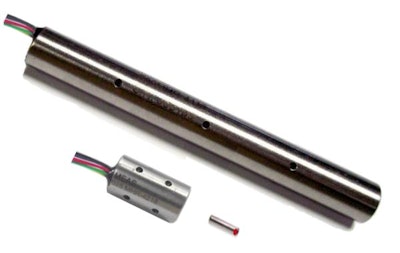

MeasurementSpecialties MHRVSeries 5637abc55372c

Measurement Specialties' MHR-V Series LVDTs (linear variable displacement transducer) are specifically designed for submersion in inert gas, mineral oil and other non-aggressive oils.

  • Operates under pressures up to 10,000 psi (700 bars)
  • Diameter measures 3/8 in. (9.5 mm)
  • Allows precision measurements in space-restrictive installations at temperatures up to 392 F (200 C)
  • Lightweight core suits use in applications where excessive core weight could influence motion of the measurement
  • Less inertia ensures accurate measurements at higher displacement speeds are easier to achieve
  • Lightweight core also reduces mechanical stresses and helps preserve structural integrity of core actuation assembly
  • Close electrical coupling between coil and core ensures high output sensitivity
  • High sensitivity provides good signal-to-displacement ratio for maximum positional resolution and for interfacing with practically all signal conditioners, conditioning circuits and most OEM ASICs
  • Magnetic stainless steel housing provides electromagnetic and electrostatic shielding
  • Available in variety of stroke ranges from ±0.025 to ±1 in.
  • Applications include use in down-hole tools and oil drilling equipment and hydraulic spool valve feedback
