QSK95 Engine for Mine Haul Trucks

Cummins has released its QSK95 engine for mine haul trucks, which provides high horsepower and reduced emissions.

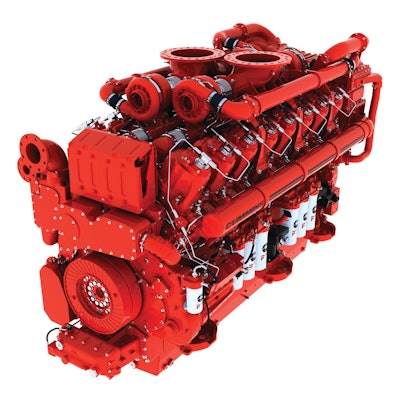

Cumminsqsk95front 10450769
Cumminslo 10108212

Cummins Inc. announces that the QSK95 engine will provide a 4,000 hp (2,983 kW) capability for ultra-class mine haul trucks, representing the highest-ever power output introduced by the company for severe duty-cycle operation.

  • Features 95 liter displacement and 16 cylinders
  • Provides enhanced strength for 360 ton and 400 ton (327 and 363 metric ton) payload class trucks
  • Capable of increasing truck speeds for climbing steep-gradient haul roads and boost hauling productivity with reduced operating cycle times
  • Meets all emissions standards, including Tier 4 Final in North America, by using Cummins Selective catalytic reduction (SCR) aftertreatment
  • Hardened power cylinder featuring strong single-piece forged-steel piston enables high power density
  • Deep structural strength is provided by a ductile iron skirted block
  • Increase in strength contributes to higher engine uptime availability, extended life-to-overhaul and more cost-effective rebuilds
  • Offers reliabile in-service and less rebuild at engine overhaul, reducing total life cycle costs
  • Capable of achieving 1.7 million gallons and above of fuel consumed before rebuild, with added advantage of no midlife intervention required
  • Modular Common-Rail System (MCRS) enables high fuel-efficiency, even when operating at maximum power output
  • With up to 2200-bar high-pressure fuel injection, MCRS reduces noise, offers smooth idle stability and eliminates visible smoke
  • NanoNet fuel filtration provides fuel cleanliness and enhances durability of MCRS system
  • Quad-turbocharging system brings simplicity of single-stage air handling system
  • Four compact turbochargers, one arranged for each bank of four cylinders, provide step-load acceptance and transient response to deliver more rapid power
  • Provides faster and easier servicing procedures, with simple access to all cooling, oil and fuel system maintenance points
  • Service intervals are a minimum of 500 hours
  • Features option of using ELIMINATOR oil purification system, mounted on engine, for extended oil change intervals
  • Offers leak-free capabilities with “press-in-place” seals on all critical joints
  • Special perimeter seal to cylinder head guarantees airborne debris cannot penetrate this critical sealing interface
  • Advanced electronics enable custom-calibration for specific duty cycles
  • Enables performance to be optimized among fuel consumption, transient response and emissions reduction to suit different haul truck applications
  • SCR aftertreatment system features flexible installation package intended to replace exhaust muffler
  • Depending on application, SCR system is capable of achieving incremental fuel savings of 5 to 10%
  • Eliminates need for Exhaust Gas Recirculation (EGR) system
