New Pettibone Traverse Telehandler Provides up to 70 in. of Horizontal Boom Transfer

The traversing boom of the new T1246X telehandler allows for a maximum forward reach of 35 ft., 10 in.

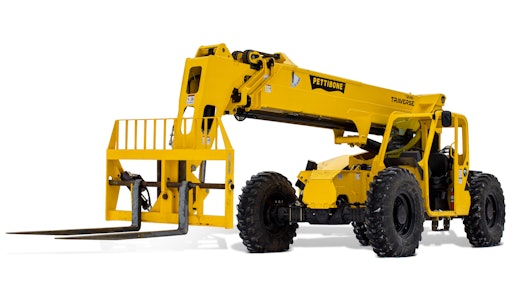

Pettibone Traverse T1246 X

Pettibone introduces the Traverse T1246X telehandler, the third Traverse model to join its next generation X-Series lineup. Traverse is the only telehandler product line on the market with a traversing boom carriage with capability to move loads by traveling horizontally. This exclusive feature allows operators to safely place loads at full lift height without having to coordinate multiple boom functions.

The T1246X has a specified lift height of 46 ft., 6 in., which exactly matches its landing height. By contrast, traditional fixed boom pivots typically have a true landing height that is several feet less than the advertised lift height, as users must account for withdrawing the forks out of the load with enough rearward travel for the fork tips to clear the landing zone.

The traversing boom of the T1246X provides up to 70 in. of horizontal boom transfer, allowing for a maximum forward reach of 35 ft., 10 in. The telehandler is powered by a 117-hp Cummins QSF 3.8 Tier 4 Final diesel engine that helps it achieve a maximum load capacity of 12,000 lbs. The engine is mounted on a side pod for easy service access while allowing excellent curbside visibility and ground clearance of 19 in.

The Traverse T1246X was designed on Pettibone’s next gen X-Series platform, delivering a combination of rugged dependability, simplified maintenance, intuitive operation, and clear sightlines for excellent visibility.

Read more: Machine Redesign Offers Opportunities for Improvement

Drivetrain and axles have been optimized to provide greater tractive effort with minimal tradeoff on top end speed. A pintle hitch mount adds versatility for towing. Built for use on rough terrain, the unit offers full-time 4-wheel-drive with limited-slip front axle differential. Tight steer angle capability provides an efficient turning radius of 14 ft., 4 in. The Dana VDT12000 Powershift transmission offers three speeds, forward and reverse.

Pettibone’s leading hydraulics continue to deliver exceptional controllability and overall operating feel, while enhancing efficiency and cycle speeds. Cylinder cushioning dampens the end of strokes – both extending and retracting – to avoid the wear-and-tear of hard, jarring stops, while also helping prevent the potential spilling of a load. The T1246X also uses a single lift cylinder that improves operator sight-lines, and has twin hydraulic lines for tilt and auxiliary plumbing.

Featuring formed boom plates and less welding, the machine’s four-section boom offers greater strength while reducing weight. The design also minimizes boom deflection for better control and accuracy when placing loads.

Boom overlap has been nearly doubled from previous models to provide smoother operation and reduce contact forces on wear pads, thereby extending service life. A bottom-mounted external extend cylinder further reduces the load on wear pads by up to 50%. This cylinder location also provides greatly improved service access to internal boom components. Heavy-duty extension chains help ensure stable boom functions and longevity. Service is further simplified by fastener-less wear pads.

The operator cab maintains Pettibone’s ergonomic seat, pedal, joystick and steering wheel positions. An analog/LCD gauge cluster comes standard. An optional 7-in. digital display with integrated back-up camera is also available. The cab also offers enhanced climate control, flat bolt-in glass, split door design, openable rear window, USB accessory plug, lockable storage under the seat, and water-resistant components for easy interior washdown.

All-steel fuel and hydraulic tanks are built to resist damage. The 30-gal. fuel tank offers ample volume for a full day’s work at 100% load, and the lockable fuel-fill is in a clean, accessible location. Other features include non-tensioned boom hoses, split-system electrical circuit panels, a 12V accessory plug in the engine bay, and heavy-duty bright LED lighting. Additional options include a sling hook for additional load security, solid or foam-filled tires, and a wide variety of attachments, including a 10-ft. tower that can extend the machine’s lift height beyond 56 ft.
