Novotechnik Vert-X 2800 Series Angle Sensors

Novotechnik's Vert-X 2800 Series angle sensors convert rotational angle into analog or digital outputs and can be configured to specific application needs.

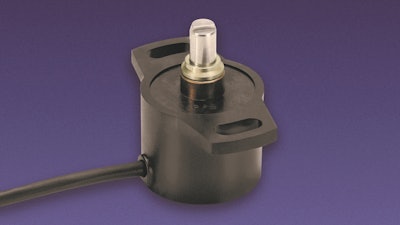

Novotechnik Vert X2800 Series Angle Sensor 582dce7f7790e

Novotechnik U.S. introduces the Vert-X 2800 Series of sensors that measure angular position.

  • Converts rotational angle into analog or digital output depending on version
  • Users can select a stock part to simply measure angle or configure the sensor to be application specific using Easy Adapt tool connected to PC
  • Possible configurations include start- and end-angles for less than 360 degree maximum range, index point, cw or ccw indication, calibration settings and non-linear curves
  • Available in single and fully redundant versions
  • Measurement range is 0-360 degrees with repeatability of 0.1 degree
  • Available analog outputs are 4-20 mA, 0.1-10V, 10-90% of supply voltage and 5-95% of supply voltage
  • Digital output choices are SPI or PWM
  • Up to two programmable TTL-level switches are available options
  • Housing base diameter measures 28 mm (1.1 in.)
  • Provides up to 14-bit resolution and linearity to ±0.1 % of measurement range
  • Sealed to IP65, life is ≥ 50 million movements and MTTF is over 100 years
  • Operating temperature range of -40-85 C (-40-185 F)
  • Features high immunity to emissions, meeting or exceeding five EN 61000 and two EN 55000 standards
