Novotechnik RSA3200 Series of Hall Effect Angle Sensors

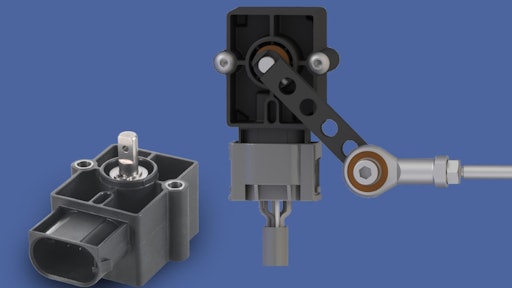

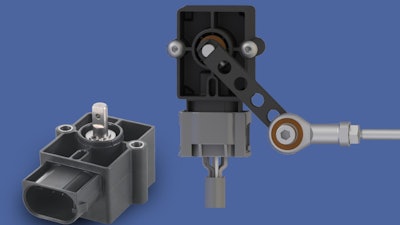

Novotechnik's RSA3200 Series angle sensors with a maximum angle measurement range of 60-360 degrees.


Novotechnik U.S. introduces the RSA3200 Series of Hall effect angle sensors featuring auto-diagnostics, fully redundant versions and ultra-EMC tolerance for use in harsh environments and high reliability applications.

  • Measurement angle is factory programmable for range maximum between 60-360 degrees
  • Optional linkage lever attaches to shaft to provide additional mounting options
  • Output versions are CANopen, SAE J1939 as well as analog: 0.25-4.75, 0.5-4.5V and 4-20 mA
  • Resolution is 12- or 14-bit
  • Repeatability is typically ≤ ±0.36 degrees for CANopen output and ≤±0.1 degree for all other outputs
  • Compact design
  • Sealing to IP67/IP6K9K for housing
  • Stainless steel D-shaft
  • Suitable for safety applications based on conformance to DIN EN ISO 13849
  • Electrical connector is a Micro Quadlock system
  • Conforms to ISO 11452 and ECE standards for EMC immunity including pulses and interference fields
  • Operating temperature range is -40-125 C (-40-257 F)
  • Withstands shock and vibration up to 50 g and 20 g respectively
  • Life is >30 million movements and MTTF is ≥ 300 years
