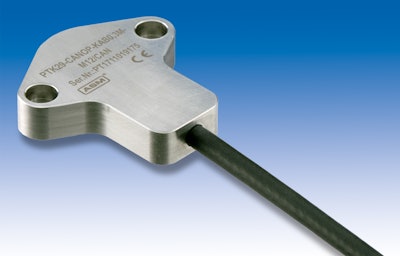

ASM Sensors POSITILT PTK29 Inclination Sensor

The ASM Sensors POSITILT PTK29 inclination sensor provides an instantaneous position signal and features static linearity up to 0.05 degrees.

Ptk29 Pressemitteilung 59244117060f7
Asmsensors 10055038

ASM Sensors introduces the POSITILT PTK29 inclination sensor that compensates dynamic influences to give correct values even when in motion.

  • Measures inclination between +/-180 degrees with one axis or +/-60 degrees with two axes
  • Utilizes gyro-compensated MEMS technology
  • Position signal is instantaneous with no delays and has static linearity up to 0.05 degrees
  • Can be mounted with selectable axis orientation
  • Sensor electronics are completely enclosed and protected by hermetically sealed stainless steel housing
  • Compact 10 mm (0.39 in.) flat and maximum 49.5 mm (1.94 in.) wide housing enables installation in space-restricted locations
  • Hermetically sealed stainless steel housing with redundant output options available for safety critical applications
  • Available in protection class IP67
  • Operates in areas of high shock and vibration in temperature range of -40-85 C (-40-185 F)
  • Shielded against electromagnetic disturbances
  • Available with digital (CANopen, CAN SAE J1939) and analog outputs
