ACEINNA MTLT305D Dynamic Tilt Sensor Module

The ACEINNA MTLT305D Dynamic Tilt Sensor Module features advanced sensor fusion and calibration algorithms to achieve 0.5 degree tilt and

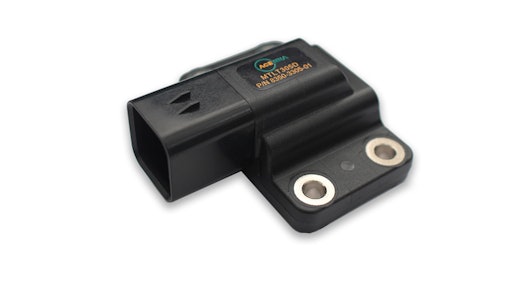

Mtlt305 Small
Aceinna Basic Logo June 2018

ACEINNA (pronounced “A See Nah”) announces the availability of its MEMS-based, MTLT305D Dynamic Tilt Sensor Module.

  • Combines accelerometers, gyroscopes and temperature sensor with advanced calibration and correction algorithms
  • Provides accurate 3D acceleration, 3D rate and Pitch and Roll measurement in dynamic, moving vehicle applications
  • Uses advanced sensor fusion (Extended Kalman Filtering) and calibration algorithms to achieve 0.5 degree tilt and <10 milli-g acceleration accuracy in wide variety of dynamic conditions
  • Calibrated to accurately operate over wide temperature range of -40-85 C (-40-185 F)
  • Completely sealed compact module (65 x 66 x 27 mm [2.56 x 2.59 x 1.06 in.])
  • Integrated connector
  • Suited for rugged construction, agriculture and other off-road applications
  • Offers high reliability, MTBF > 50k hours and is ITAR- Free
  • Miniature plastic housing is durable under hazardous environments (IP68 and IP69K ratings)
  • Features Ampseal 16, 6 position connector
  • Supports wide 4.9-32V supply input range (qualified for use in both 12 and 24V vehicle platforms)
  • Easy to integrate
  • Supports industry standard SAE J1939 messaging over CANbus
  • Included ACEINNA NAV-VIEW software provides simple to use graphical interface to display, record, playback, and analyze all parameters over the RS232 port
  • NAV-VIEW can also be used to set wide range of user-configurable fields to optimize system performance for various dynamic applications
