POSITAL Dynamic TILTIX Series with CANopen or SAE J1939 Communication Interfaces

At bauma 2019, POSITAL will introduce its Dynamic TILTIX Series which is now available with CANopen or SAE J1939 communication interfaces.

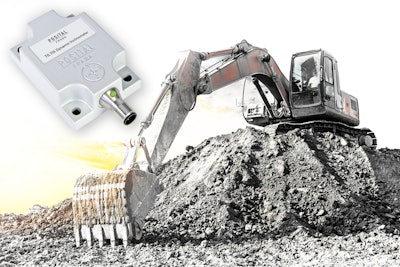

Press Photo Dynamic Tiltix
POSITAL FRABA 56cf5586b503f

POSITAL's Dynamic TILTIX Series is now available with CANopen or SAE J1939 communication interfaces, making it easier to use them in mobile machinery and heavy-duty construction vehicles.

  • Acceleration-compensated tilt sensors
  • Able to deliver accurate measurement under harsh operating conditions, including rapid motions, shock and vibration loadings
  • Includes addition of second measurement system
  • Electromechanical gyroscope system was added to measure rate of rotation in different axes
  • Signals from accelerometer and gyroscope are combined by algorithms to filter out errors caused by acceleration loads so actual inclination is reported accurately
  • Dual measuring system, guarantees reliable inclination measurement, even under rapid motion, and helps eliminate time-wasting interruptions
  • Provides precise inclination measurements, as well as detects  accelerations and rates of rotation in all three axes which enables additional features and applications to be implemented
  • Suitable for horizontal and vertical mounting
  • Measuring range of ± 180 degrees
  • Measuring and signal processing components are contained in heavy-duty die-cast aluminum housing
  • Can withstand shock loads of up to 100 g
  • Packaging has protection class rating of IP69K
  • Achieves static accuracy of ± 0.3 degrees, dynamic accuracy in moving system of 0.5 degrees, and resolution of 0.01 degrees
  • Easy to install, requiring only four mounting bolts and connector cable
