Curtiss-Wright VTS2021 Dual-Axis, Vibration-Tolerant Tilt Sensor

Exhibited at bauma 2019, the VTS2021 uses the latest IMU technology for vibration-tolerant operation in dynamic applications.

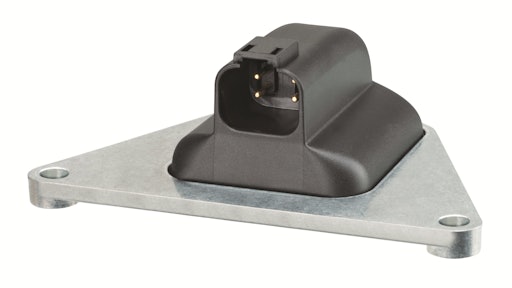

Vts 3quarter Cleaned Up Cmyk
800px Curtiss Wright Logosvg 10941485

Curtiss-Wright’s Industrial division has announced the launch of the VTS2021, a dual-axis, vibration-tolerant tilt sensor.

  • Offers optimal combination of performance, safety and cost in dynamic applications
  • Suited for pitch and roll detection in on- and off-highway industrial vehicle applications, including mobile elevating work platforms
  • Uses IMU technology and fast-acting software algorithms to filter out disturbances caused by vibration and vehicle motion
  • Provides output stability without measurement delays usually associated with heavily-damped, traditional sensing methods
  • Each measurement axis has two sensing elements which are constantly compared to ensure correct operation
  • If error is detected, its condition is communicated to host electronics to ensure safe operating situation is assumed
  • Each output signal is calibrated to account for thermal drift, ensuring accuracy over operating temperature range
  • Operates from 6-48V DC supply
  • For use on 12V and 24V DC vehicle systems
  • SAE J1939 CANbus output with choice of baud and frame rates
  • Outputs thermally compensated over -40-85 C (-40-185 F) operating range
  • IP67 rating (with mated connector) provides outdoor environmental protection
  • Integrated, 4-pin Deutsch DT04 compatible connector for quick, easy installation
