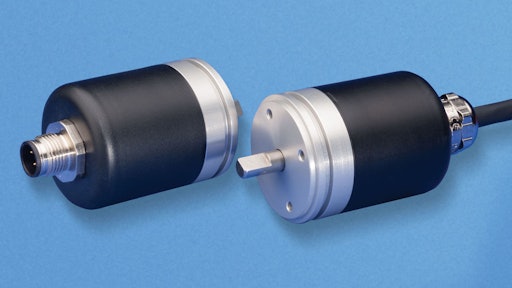

Novotechnik RSB 3600 Series Absolute Single-Turn Angle Sensors

Novotechnik U.S. introduces the RSB 3600 Series of absolute single-turn angle sensors.

• Non-contact sensors
• Galvanized steel housing and stainless steel shaft
• Up to 100 N working shaft load for HD version
• Sealed up to IP69K, depending on version
• EGMR (enhanced giant magnetic resistance) compliant
• Retains angular position even when power is removed, and can do so for years without power
• No need for batteries
• Operating speed is up to 12,000 rpm
• Features 36.5 mm (1.4 in.) profile
• Count to 16 turns and 12-bit resolution
• Provides angular position from 0-360 degrees
• Repeatability of <0.1 degree, and typical independent linearity of ≤ ±0.8% F.S.
• Single, partially redundant and fully redundant two channel versions are offered
• Output options are: 0.25-4.75V, 0.5-4.5V, 0.1-10V, 4-20 mA, and 10-90% of power supply
• Available in connector or cable versions as well as 5 and 24V supply models
• Operating temperature range of -30-85 C (-22-185 F) and 0-98% RH, non-condensing
• Withstands shock to 50 g and vibration to 20 g
