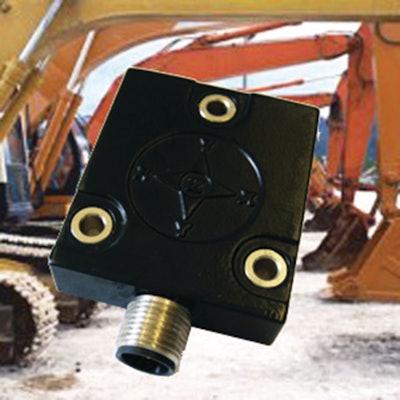

Tough enough for the harshest environments, ACCELENS inclinometers from FRABA Inc. are available in two-axis (+/-80°) or single-axis (360°) versions.
- Measuring range +/-80° (2-axes) and 360° (1-axis)
- Inclinometer based on a MEMS acceleration sensor
- Horizontal or vertical mounting
- RS232 Digital and/or Analog or CANopen interface
- Compact, Durable Housing
- Programmable Parameters
- Resolution ≤ 0.01°; Accuracy ≤ 0.1°
- Temperature Range: -40 C to 85 C
- Active linearization and temperature compensation
- Protection Class: IP68
- Three-Point-Mounting
- Connection: 1m cable output
The sensor consists of two electrodes, one is fixed, and the other is flexible (connected with spring elements). When the inclinometer is parallel to the surface of measurement, a corresponding capacitance is measured. If the sensor is tilted, the flexible electrode will change its position relative to the fixed electrode. This results in a change of the capacitance between the two electrodes which is measured by the sensor cell. The change of the capacitance is converted to a corresponding inclination value.
