AX06045X Series Universal Inclinometer

Axiomatic Technologies' AX06045X series inclinometer is a ruggedly designed sensor with CANopen networking capabilities.

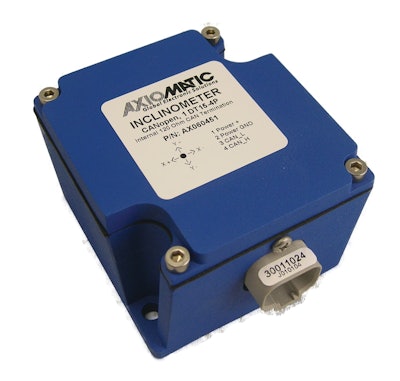

Ax060451300dpi 10477126
Axiomatic Logo 2019

Axiomatic’s family of rugged inclinometers and tilt sensors has a series of new low cost sensors that can measure ±90 degrees or 360 degrees angular rotation. The AX06045X series features CANopen networking for communicating the angular measurement.

  • Features rugged housing with gasket and four-pin Deutsch IPD connector to achieve IP67 rating
  • A model with integral 120 Ohm CAN termination resistor is available
  • For CANopen models, application programming is achieved via standard and commercially-available tools for CANopen
  • Supports SAE J1939 CAN interface as well, and is fully configurable using Axiomatic Electronic Assistant programming tool for PCs
  • Performs pre-processing of angular information according to users’ needs
  • Measures inclination angle in two orthogonal sensing directions X and Y in the range of up to ±90 degrees
  • If vertically installed, it can measure an inclination angle in one sensing direction in the ±180 degrees (0-360 degrees) range
  • Angles are measured by a two-axis MEMS sensor, which senses acceleration caused by gravity force
  • Output signals are normalized and processed by microcontroller to receive inclination angles, which are sent to CAN bus
  • Internal architecture is user-programmable and allows definition of custom functionality using a set of predefined internal functional blocks
  • In tilt sensor application, an out-of-range state can be transmitted as one of its outputs
