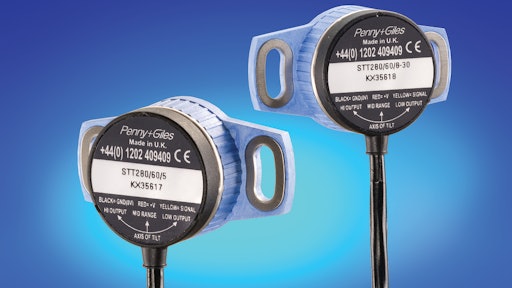

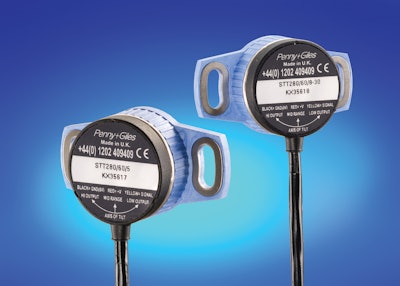

STT280 Tilt Sensors

Penny + Giles' STT280 tilt sensors are well suited for use in boom angle positioning applications.

Stt280grouph6jul07 10624741

Penny + Giles is supplying its STT280 tilt sensors to Stellar Industries for a boom angle positioning application on its range of truck-mounted telescopic winch-line cranes.

  • Relays crane condition and operation to operator
  • Features choice of measurement ranges from ±10 degrees, ±20 degrees, ±30 degrees and ±60 degrees
  • Offers output range from 0.5 to 4.5V DC over full inclination angle and a nominal 2.5V DC at 0 degree tilt
  • Can operate from a 5V DC regulated or 8 to 30V DC unregulated supply
  • Uses solid state 3D-MEMS (Micro-Electro-Mechanical Systems) technology to measure inclination relative to earth's gravity
  • Low power requirement of less than 6.5mA
  • Can be used in hard-wired or battery-powered systems
  • Features compact design for discrete placement
  • Robust design enables operation in a number of heavy-duty applications
