PLUS+1-Compliant CSS1000 Slope Sensor

Sauer-Danfoss introduces its PLUS+1-compliant CSS1000 slope sensor featuring MEMS technology and compatibility with CAN 2.0 B protocols.

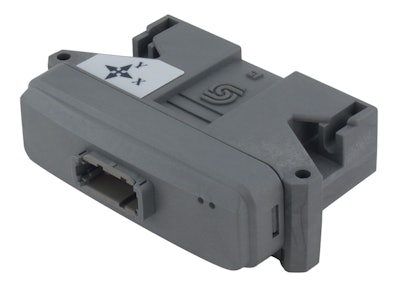

S D Css1000 Slope Sensor 11074350
Logotype Cmyk Pms 11172710

Sauer-Danfoss announces the release of the PLUS+1-compliant CSS1000 slope sensor, a dual-axis slope sensor featuring state-of-the-art MEMS (Micro-Electro-Mechanical-System) technology.

  • CAN 2.0 B-compliant
  • Intelligently cancels out transverse machine motion to provide high-precision, fast-responding and stable slope signal
  • SAE J1939 or Sauer-Danfoss proprietary CAN protocols are supported
  • Includes for each axis MEMS-based accelerometer to measure angle with respect to gravity and MEMS gyroscope to measure acceleration around the axis
  • Robust MEMS sensing technology combined with advanced signal processing produces output that remains accurate in dynamic, heavy-duty applications
  • Each axis has an operation range of ± 12.5 degrees (± 22% slope)
  • Extended-range version is in development
  • IP67 rated
  • Can be easily integrated into a control system developed in PLUS+1 GUIDE (Graphical User Integrated Development Environment)
  • Tuning parameters can be set via GUIDE PLUS+1 Service Tool
  • Standard PLUS+1 housing offers a proven design and multiple mounting options
  • Includes 12-pin Deutsch DTM connector
  • Offers 9 to 36V DC power supply range
  • CE compliant
