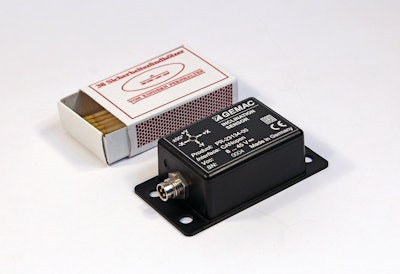

CAN/CANopen Inclination Sensor

GEMAC has developed a smaller version of its CAN/CANopen inclination sensor which operates in temperatures ranging from -40 to 176 F.

Gemac Newgeneration 11198054

Sensor manufacturer GEMAC introduces its CAN/CANopen inclination sensor in a cost- and space-saving standard series for mobile applications.?

  • Stands up to highest of interference immunity requirements
  • For one and two axes
  • Measures 68 x 36.3 x 20.7 mm (2.7 x 1.4 x 0.8 in.), almost two-thirds slimmer than the previous generation
  • Meets international performance standards such as EN ISO 14982 for agricultural and forestry machinery and EN 13309 for construction machinery
  • Two-dimensional version detects angles up to ±90 degrees with a resolution of 0.01 degrees and a representative accuracy of ±0.1 degrees (in the range up to 60 degrees)
  • One-dimensional type measures up to 360 degrees with a representative accuracy of ±0.15 degrees
  • Features operating temperature range from -40 to 80 C (-40 to 176 F)
  • Available in a plastic housing with the CAN and CANopen industry interfaces
